Sealing Machines

Explore Shivshakti’s complete range of sealing machines—from manual and automatic L sealers to shrink tunnels, web sealers, and continuous band sealers—engineered for automation, export packaging, and high-speed throughput. Designed for flexible formats, thermal precision, and durable performance across industries.

sealingmachinesautomaticsemi-automaticmanual

Explore Model Variants

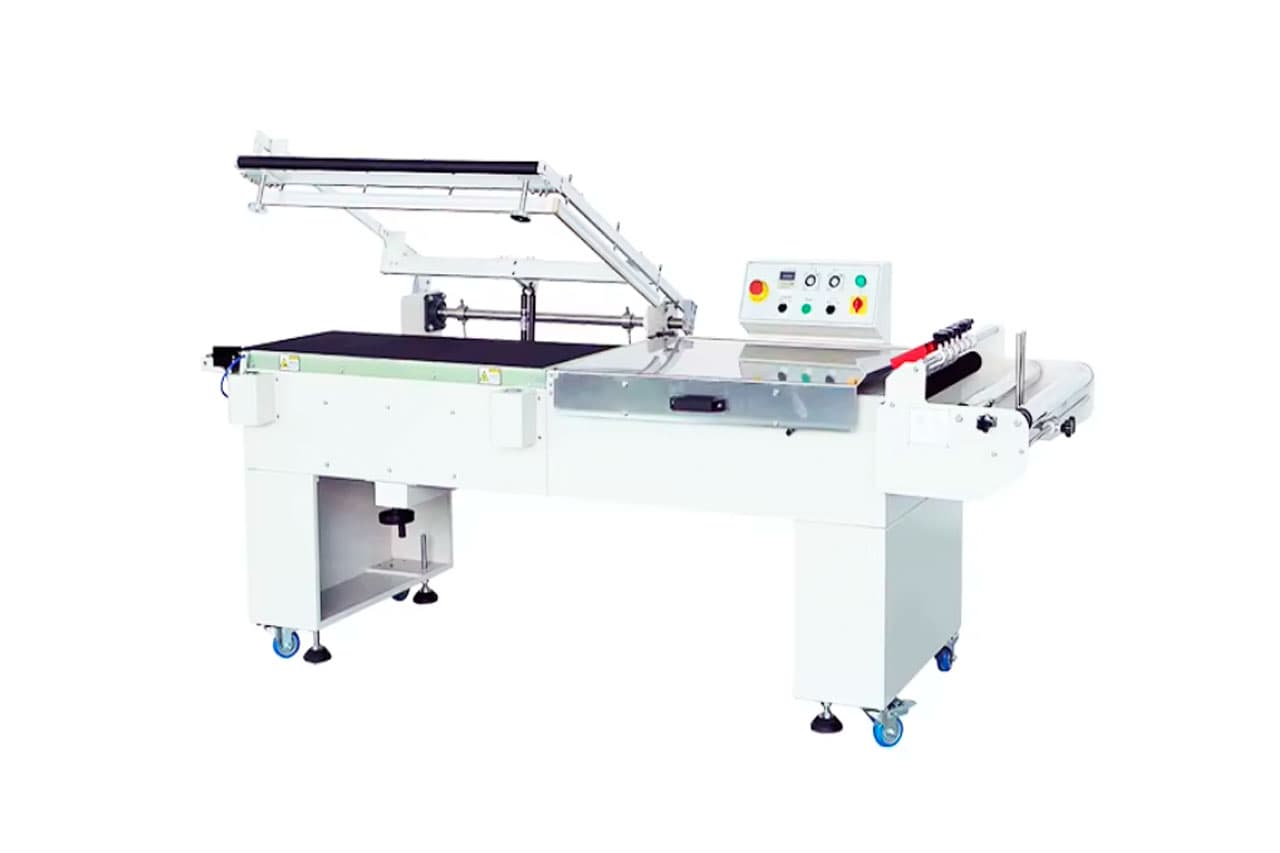

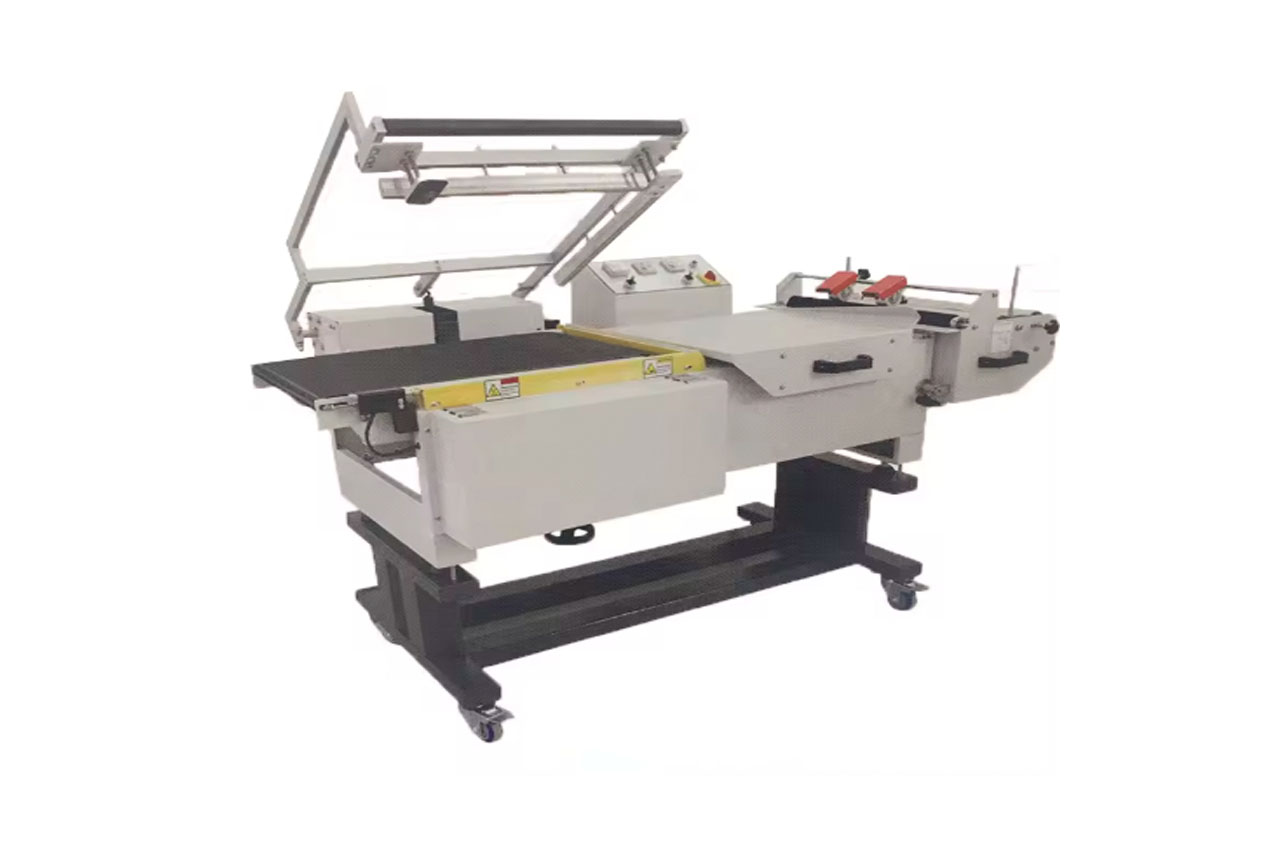

Semi-Automatic L Sealer

Semi-automatic L sealer for medium-volume packaging

Machine TypeSemi Automatic

Dimensions1569 x 710 x 1010 mm

Max Packaging Size450 x 400 x 250 mm

Sealing Size550 x 450 mm

Packaging Speed800–1000 pcs/hour

Power Supply220V, 50Hz, 1.2 KW

Net Weight110 kg

RemarksSemi-automatic L sealer for medium-volume packaging

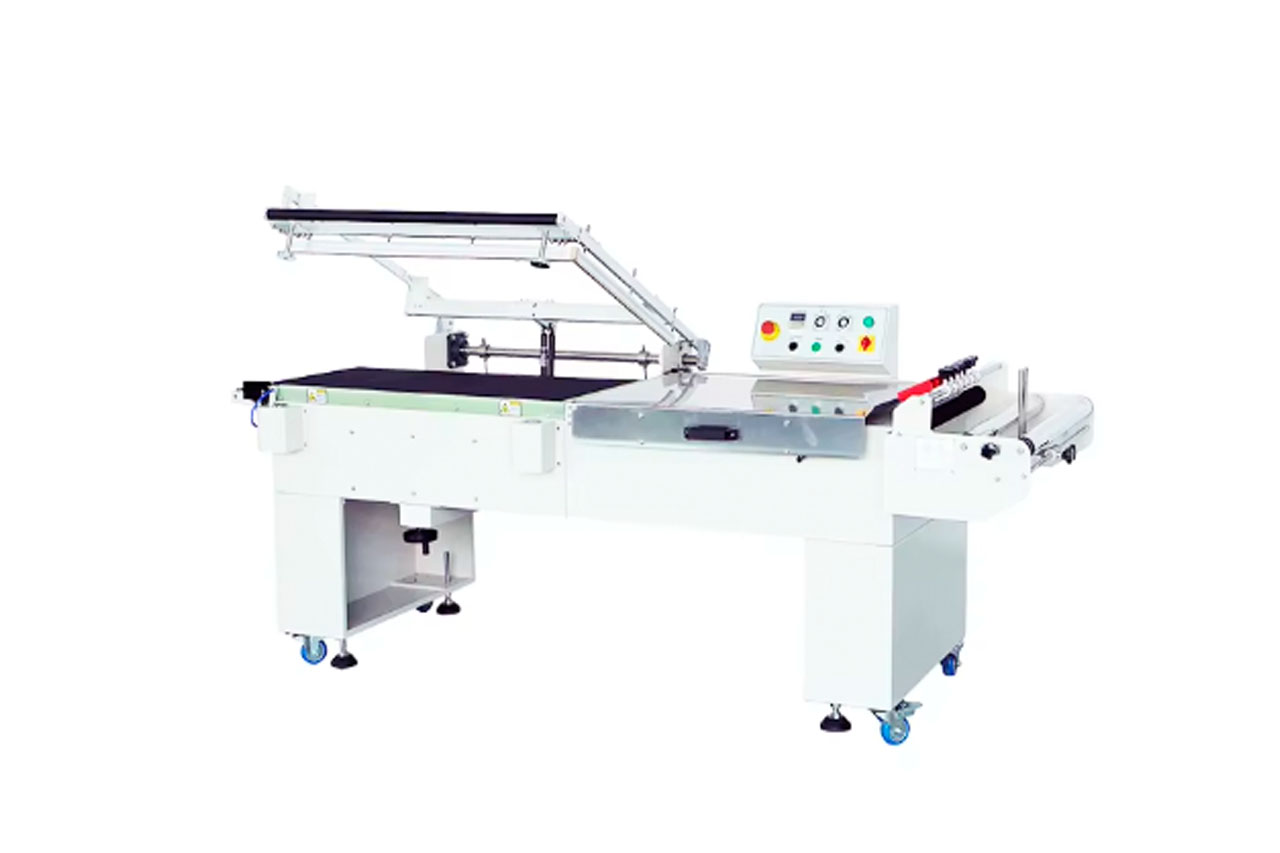

Manual L Sealer

Manual L sealer for small-scale packaging operations

Machine TypeManual

Dimensions1450 x 650 x 900 mm

Max Packaging Size450 x 400 x 300 mm

Sealing Size550 x 350 mm

Packaging Speed400–500 pcs/hour

Power Supply220V, 50Hz, 1 KW

Net Weight80 kg

RemarksManual L sealer for small-scale packaging operations

FQL 450 A (Auto L Sealer + Shrink Tunnel) main image

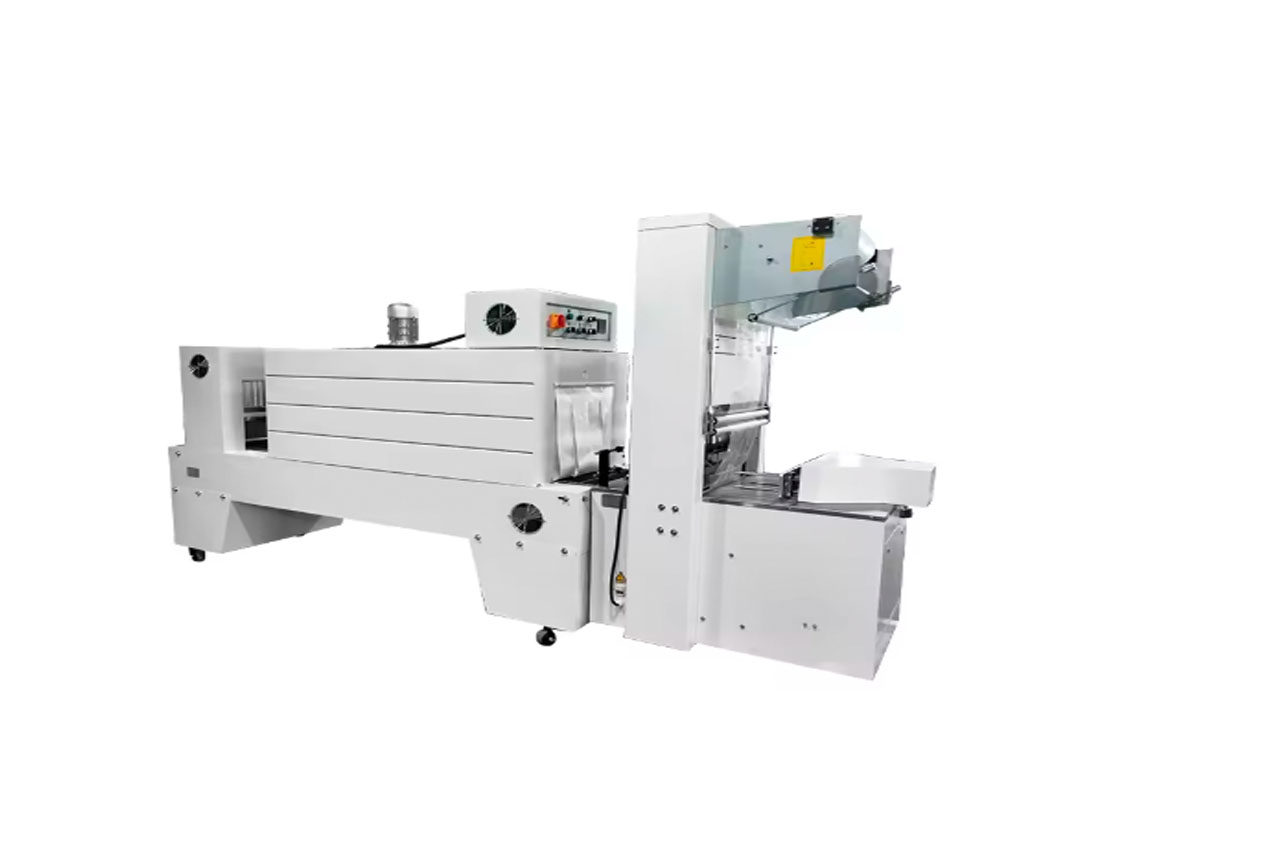

FQL 450 A (Auto L Sealer + Shrink Tunnel)

Integrated L sealer and shrink tunnel for high-speed packaging

Machine TypeAutomatic

Dimensions1650 x 828 x 1480 mm

Packaging Height140 mm

Seal Tangent Size560 x 440 mm

Effective Size440 x 340 mm

Production Capacity15–30 bags/min

Air Pressure0.5 Mpa

Power Supply220V, 50/60Hz, 1.35 KW

Machine Weight300 kg

RemarksIntegrated L sealer and shrink tunnel for high-speed packaging

BS4522N (Shrink Tunnel)

Shrink tunnel for flexible packaging materials

Dimensions1600 x 700 x 1370 mm

Shrink Oven Size1200 x 450 x 220 mm

Conveying Speed0–10 m/min (adjustable)

Conveying Weight30 kg

Power Supply380V, 50/60Hz, 12 KW

MaterialPOF/PVC/PP

Machine Weight160 kg

RemarksShrink tunnel for flexible packaging materials

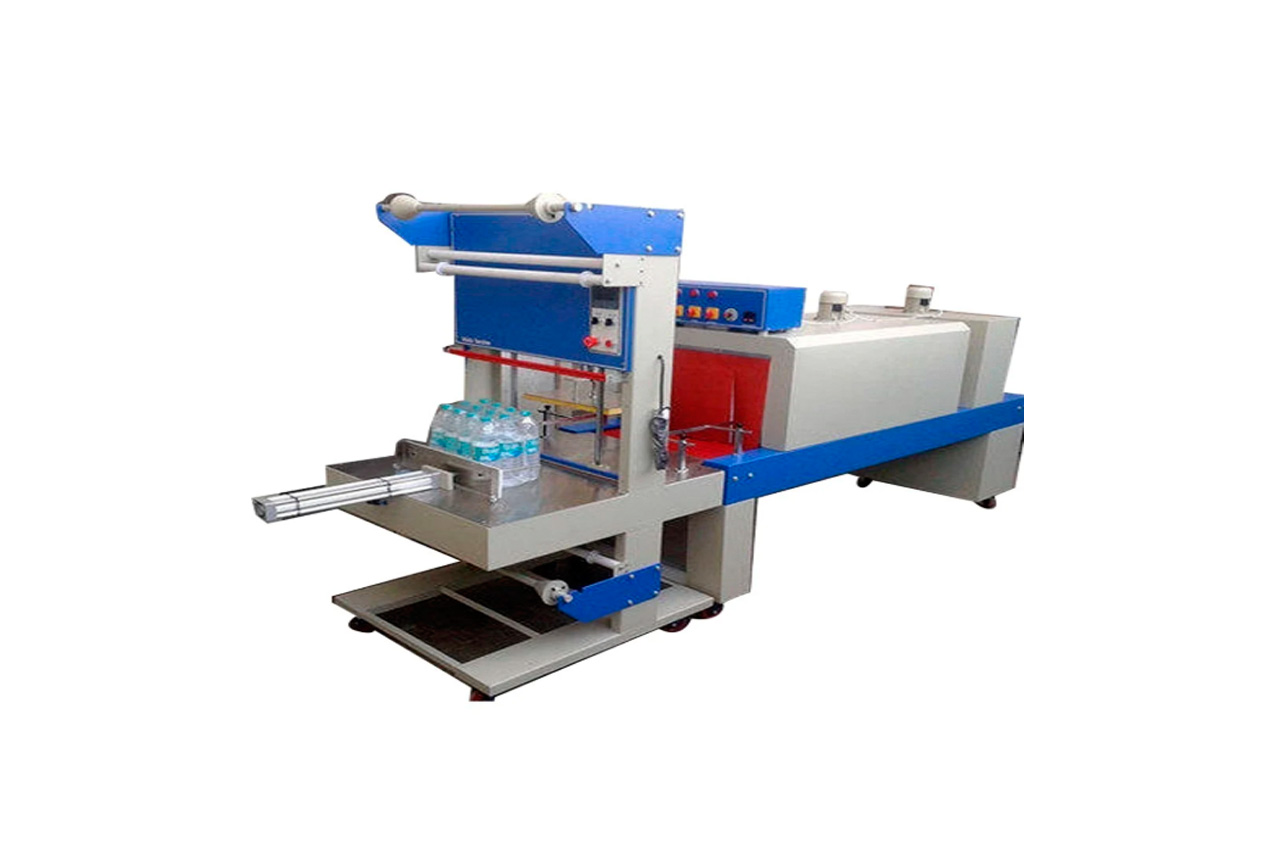

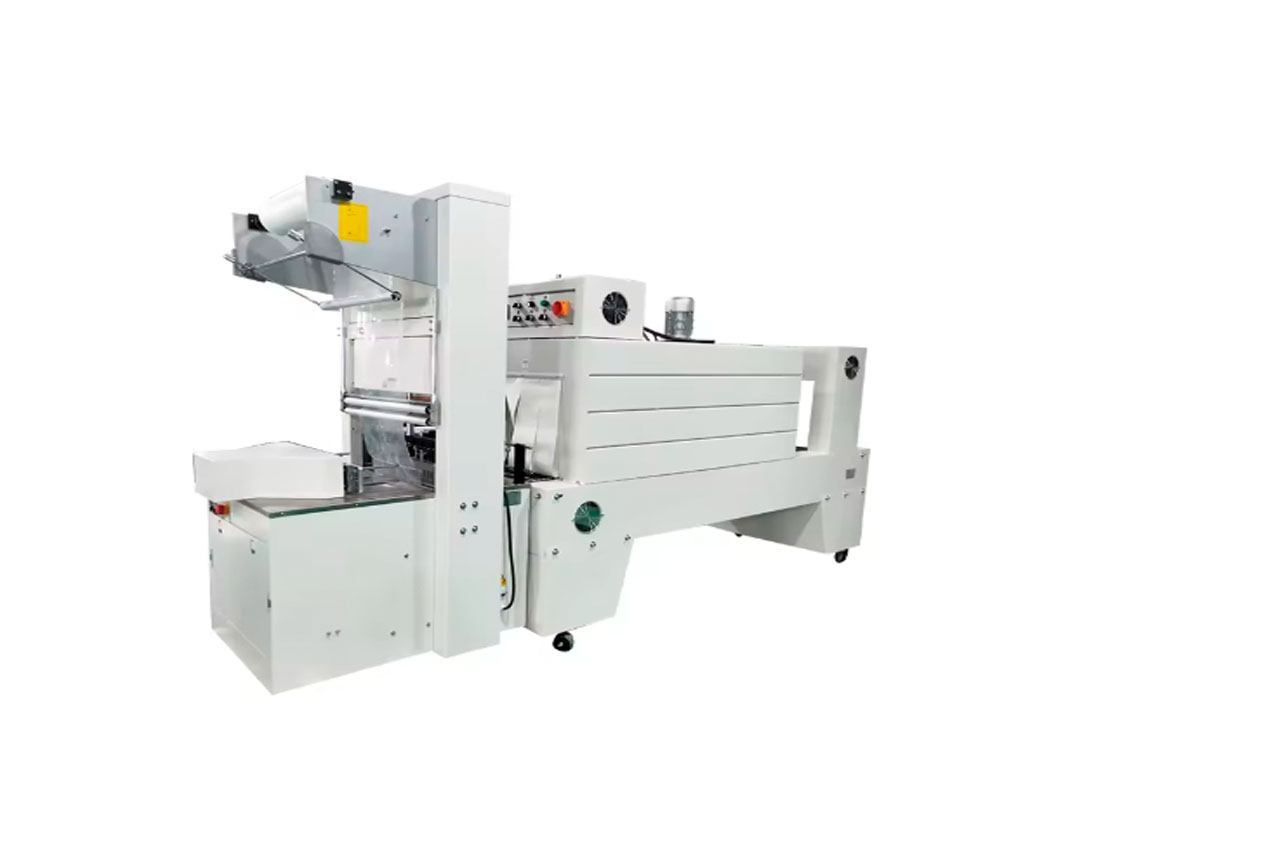

6540 Web Sealer

Web sealer for large-format packaging

Dimensions370 x 920 x 1800 mm

Max Packaging Dimension500 x 290 x 380 mm

Sealing Length650 mm

Packing Speed0.12 pcs/min

Power Supply380V, 50Hz, 3 Phase, 1.5 KW

Air Pressure6 kgf/m²

Machine Weight700 kg

RemarksWeb sealer for large-format packaging

5540 Shrink Tunnel

Shrink tunnel for high-volume shrink wrapping

Dimensions2550 x 850 x 1500 mm

Max Packaging Dimension1450 x 550 x 400 mm

Packing Speed0–10 pcs/min

Power Supply380V, 50Hz, 3 Phase, 2.1 KW

Machine Weight300 kg

RemarksShrink tunnel for high-volume shrink wrapping

SSP-770 (Continuous Band Sealer) main image

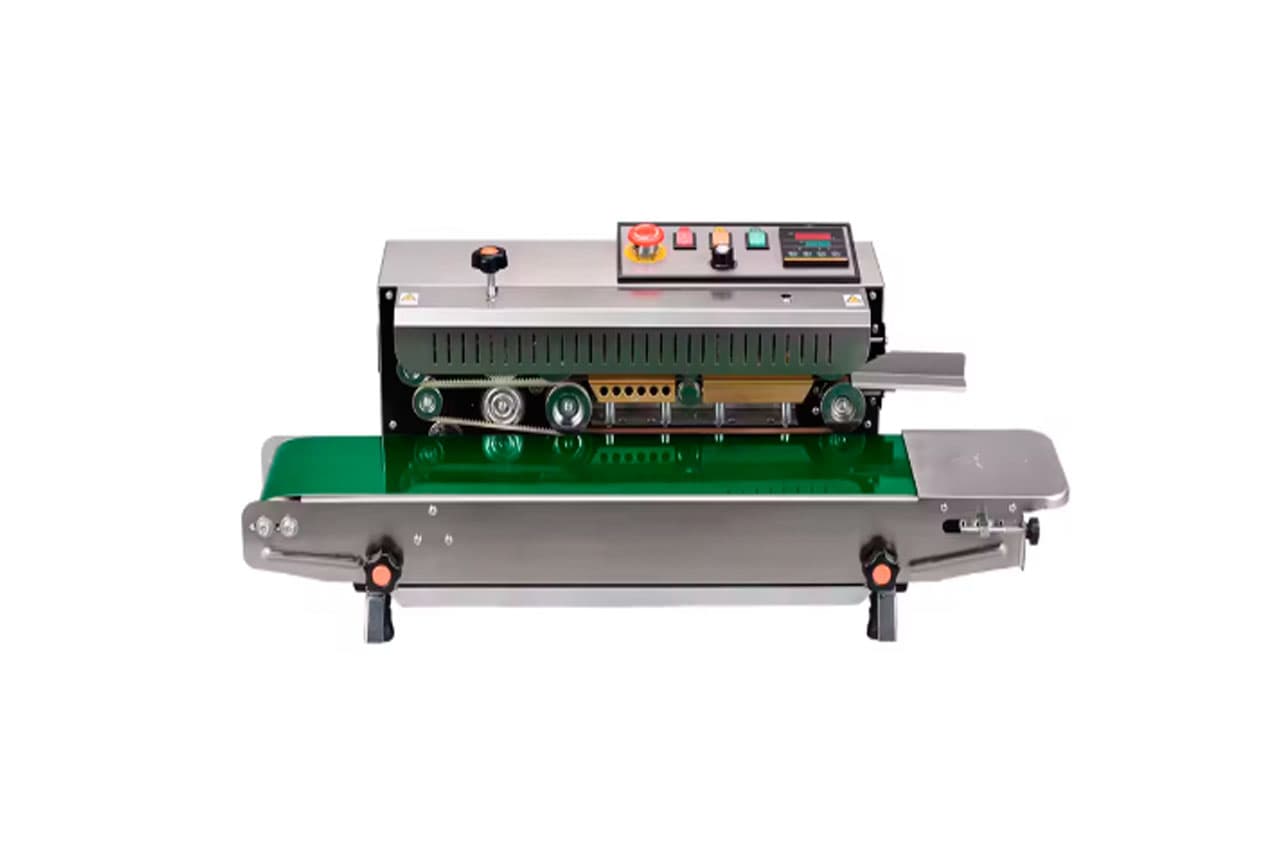

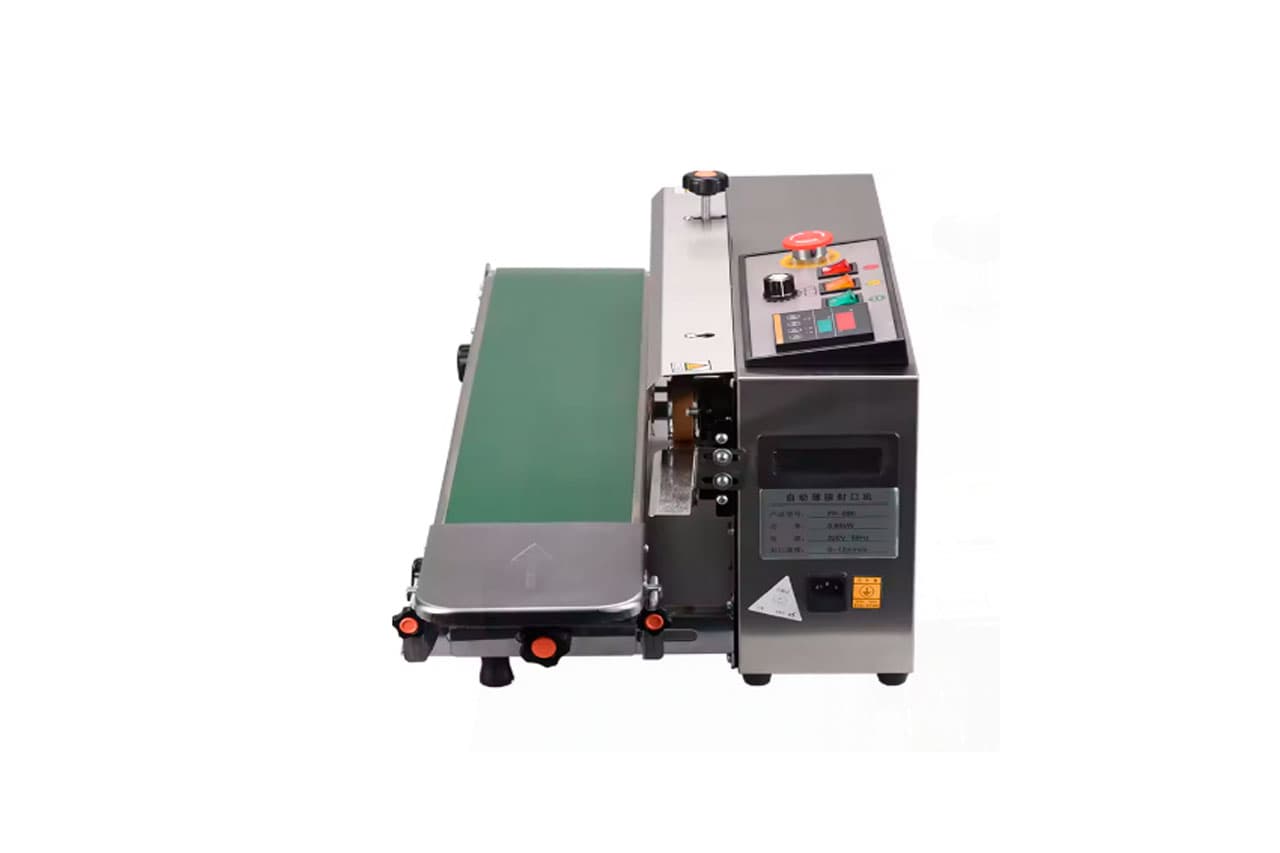

SSP-770 (Continuous Band Sealer)

Compact band sealer for lightweight packaging

Power Supply110V / 220V, 50Hz, 60W

Sealing Electric Power2 x 300W

Sealing Speed0–21 m/min

Sealing Width6–12 mm

Temperature Range0–300°C

Sealing Center To Conveyor10–40 mm

Film Thickness< 0.4 mm

Max Load Weight< 3 kg

Dimensions840 x 380 x 270 mm

Machine Weight21 kg

RemarksCompact band sealer for lightweight packaging

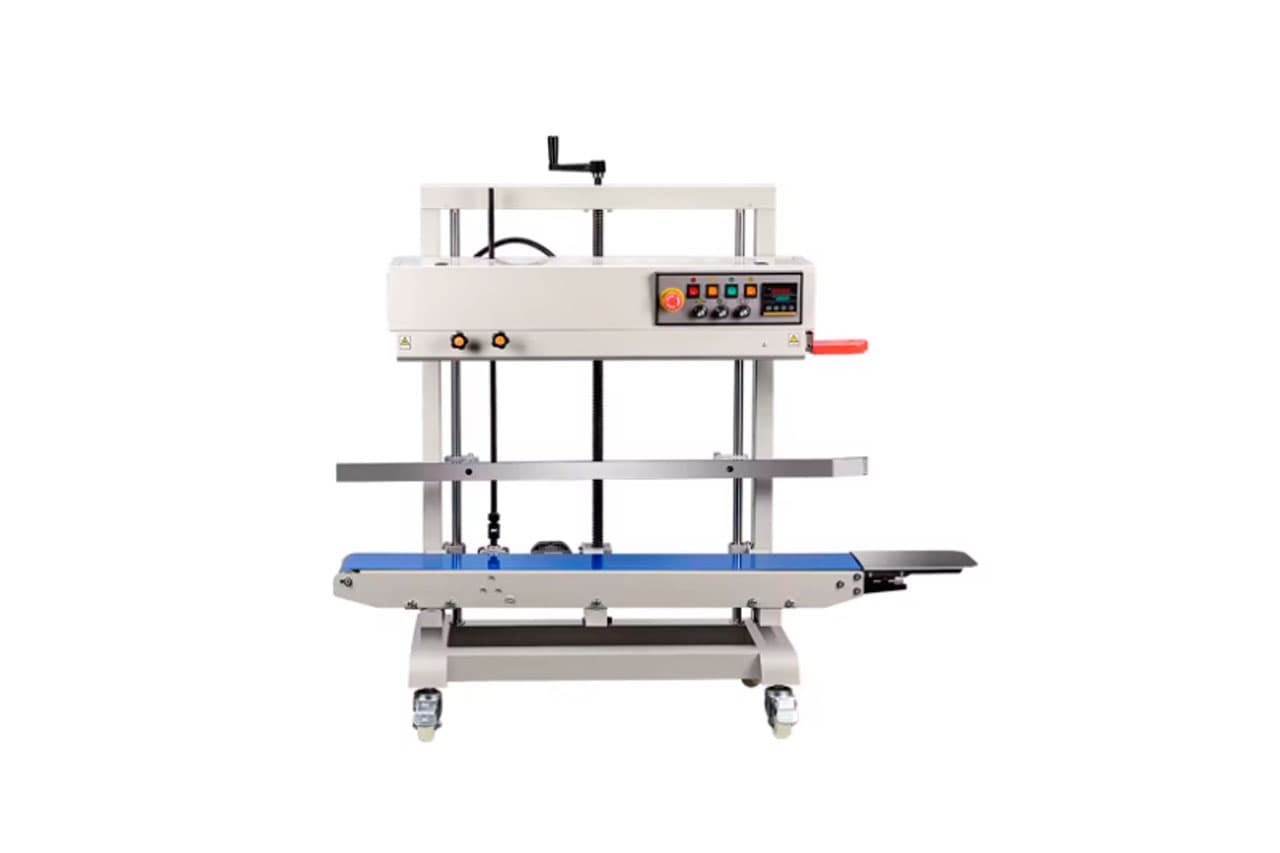

SSP770 II (Vertical Continuous Band Sealer) main image

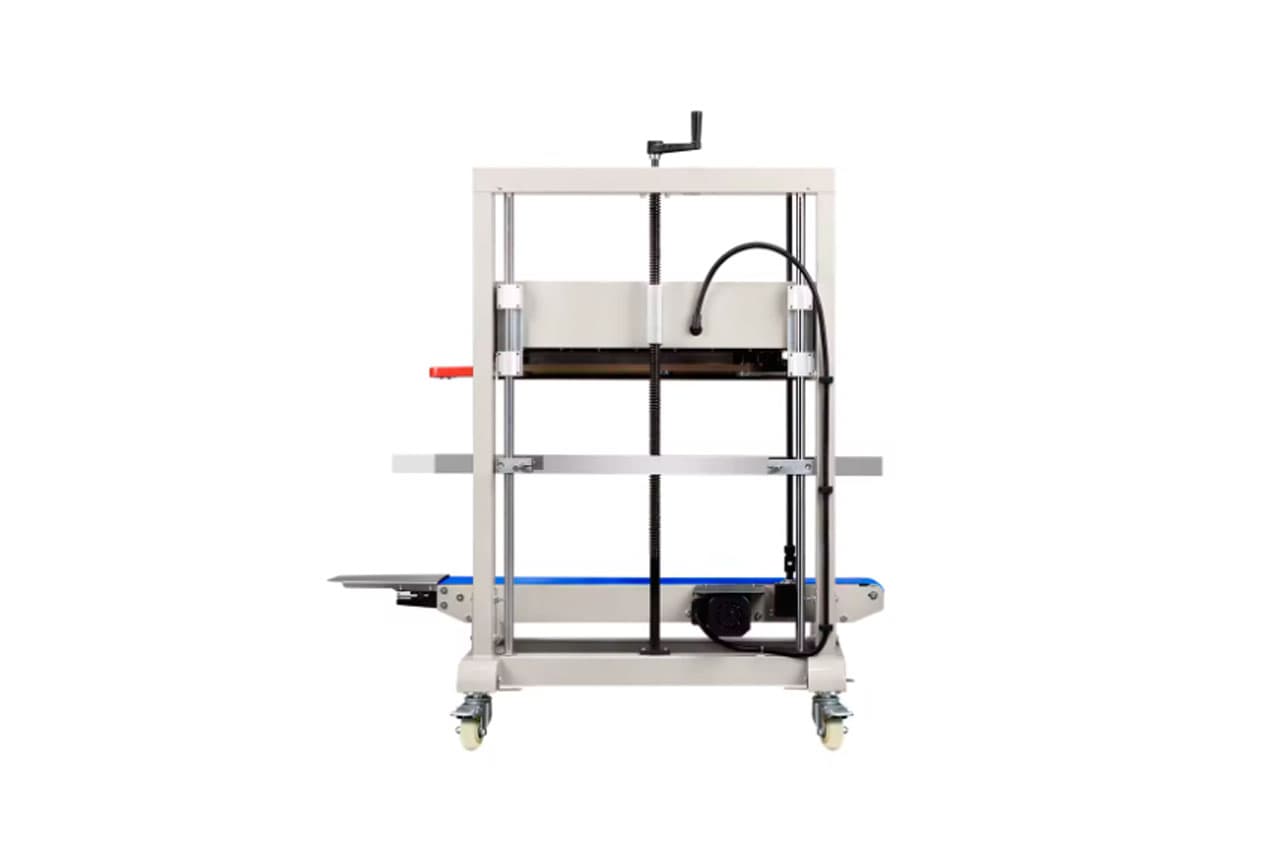

SSP770 II (Vertical Continuous Band Sealer)

Extended band sealer for taller packaging formats

Power Supply110V / 220V, 50Hz, 60W

Sealing Electric Power2 x 300W

Sealing Speed0–21 (1–30) m/min

Sealing Width6–12 mm

Temperature Range0–300°C

Sealing Center To Conveyor120–280 mm

Film Thickness< 0.4 mm

Conveyor Size830 x 150 mm

Max Load Weight< 3 kg

Dimensions840 x 380 x 560 mm

Machine Weight26 kg

RemarksExtended band sealer for taller packaging formats

SSP-1370LD (Heavy Duty Band Sealer) main image

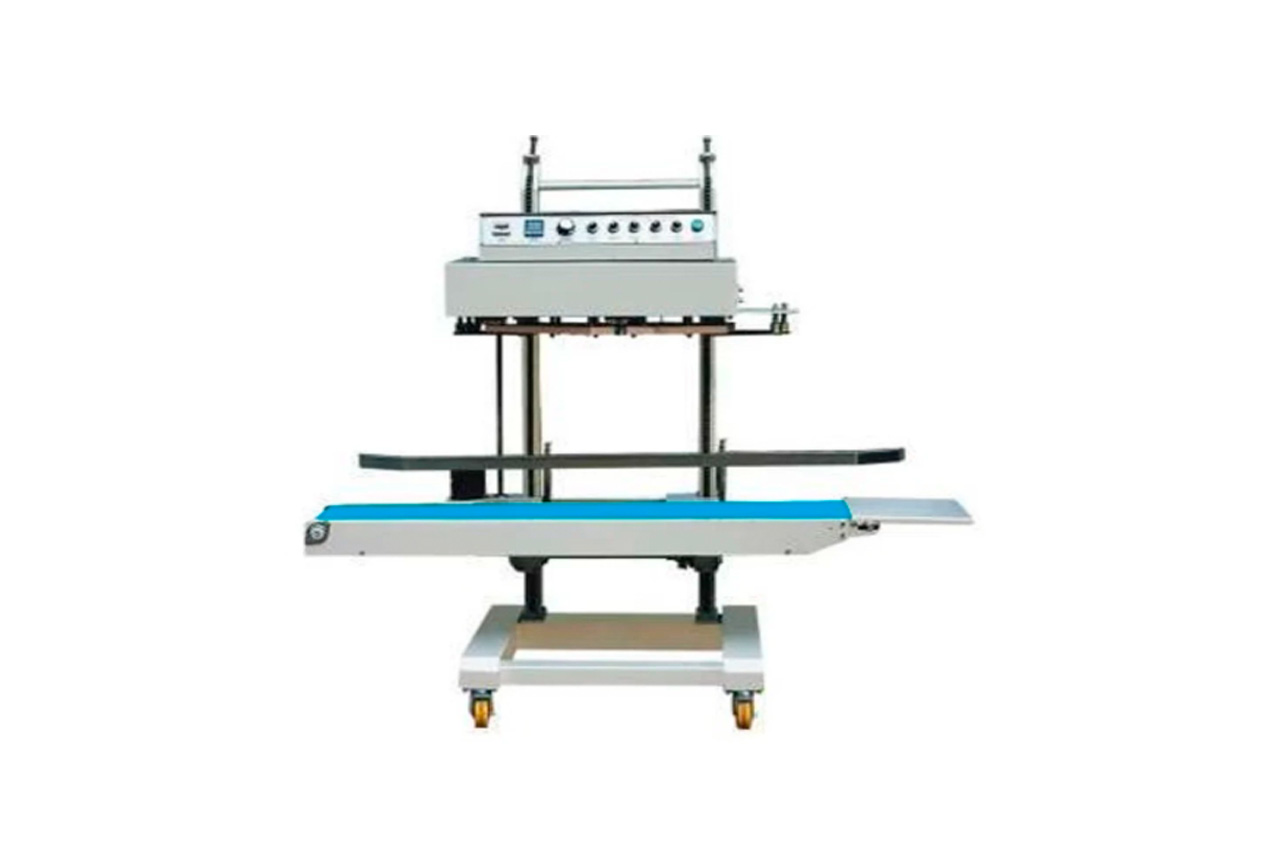

SSP-1370LD (Heavy Duty Band Sealer)

Heavy-duty band sealer for bulk packaging

Power Supply220V, 50Hz, 120W

Sealing Speed0–12 m/min

Sealing Width12–15 mm

Temperature Range0–300°C

Dimensions1243 x 580 x 1228 mm

Conveyor Loading< 15 kg

Machine Weight120 kg

RemarksHeavy-duty band sealer for bulk packaging

SSP-1100V (Heavy Duty Band Sealer) main image

SSP-1100V (Heavy Duty Band Sealer)

Compact heavy-duty band sealer for medium loads

Power Supply220V, 50Hz, 120W

Sealing Speed0–12 m/min

Sealing Width8–12 mm

Temperature Range0–300°C

Dimensions1243 x 580 x 1228 mm

Conveyor Loading< 10 kg

Machine Weight80 kg

RemarksCompact heavy-duty band sealer for medium loads

Need a customized packaging system?

Shivshakti Group offers tailored solutions built for export compliance, automation efficiency, and industrial scalability. Let’s engineer your ideal setup.
