Wrapping Machines

Explore Shivshakti’s complete range of wrapping machines—from carton box and plate wrapping systems to shrink wrapping tunnels—engineered for export packaging, automation, and high-speed throughput. Designed for adjustable formats, film flexibility, and durable performance across industries.

wrappingmachinesautomaticsemi-automaticmanual

Explore Model Variants

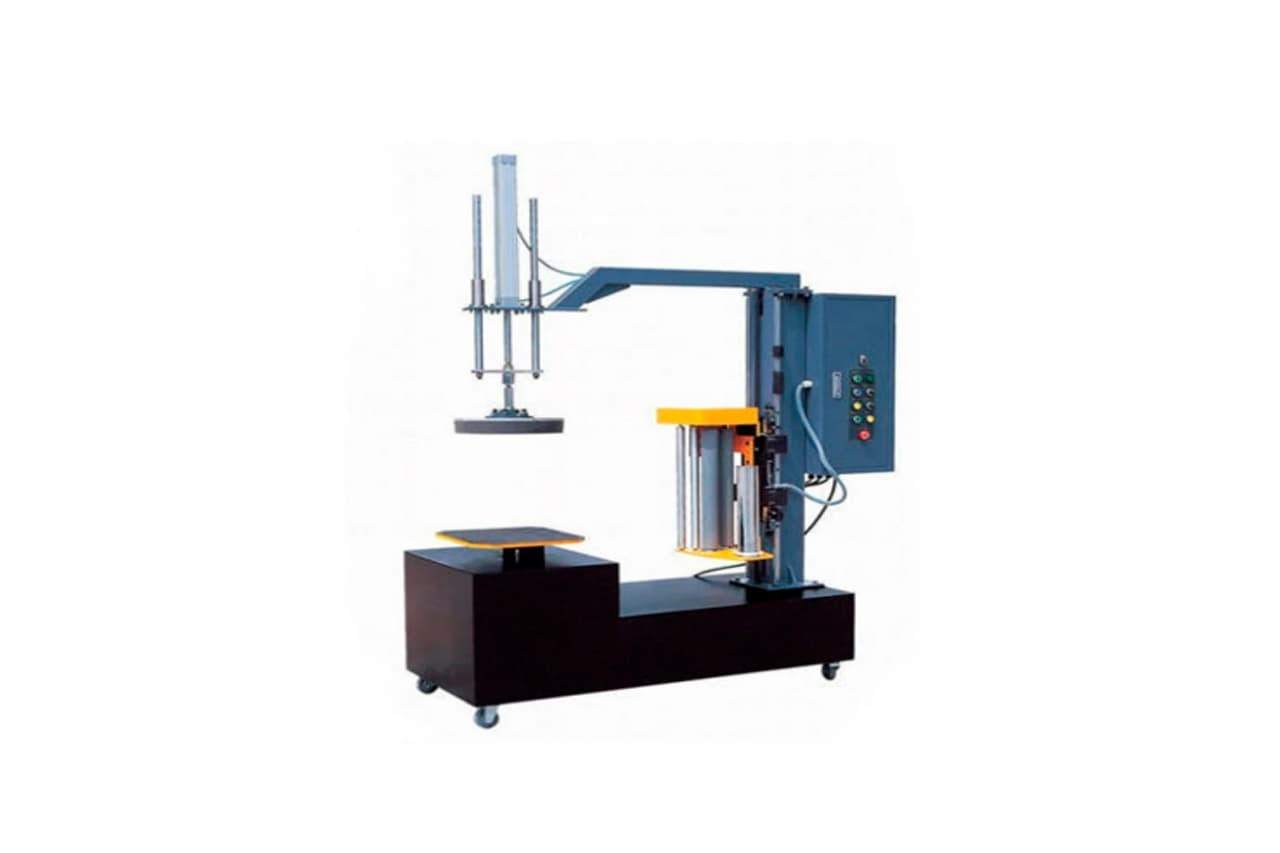

SSP-03BW (Carton Box Wrapper) main image

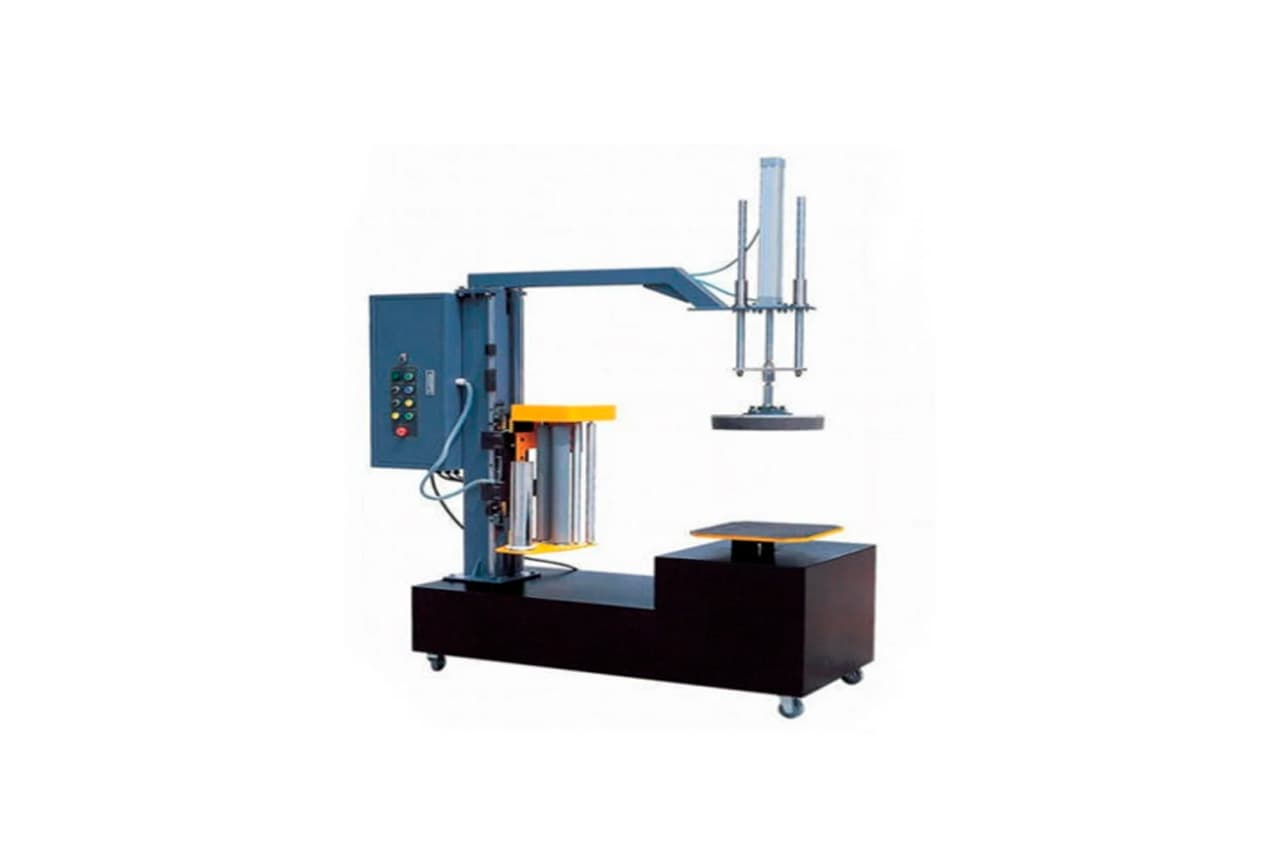

SSP-03BW (Carton Box Wrapper)

Carton box wrapping system for medium-weight packaging

Film Carriage DriveUp-down motion to suit height differences

Film CarriageHeavy-duty chain lift with calm and safe power

Pre Stretch250–300%

Height SensingAdjustable sensor lock with top limiting switch

Rotating Platform Speed3–25 RPM (adjustable via frequency charger)

Top PlatePneumatic top plate

Packaging Box Size300–800W x 200–800H x 300–800L mm

Max Weight Capacity100 kg

Power Supply220V, 50Hz, 1 Phase, 1.0 KW

Working Table Height625–780 mm (adjustable)

Adhesive Tape Width48/60/72 mm

Machine Size1740 x 600 x 1800 mm

Machine Weight220 kg

RemarksCarton box wrapping system for medium-weight packaging

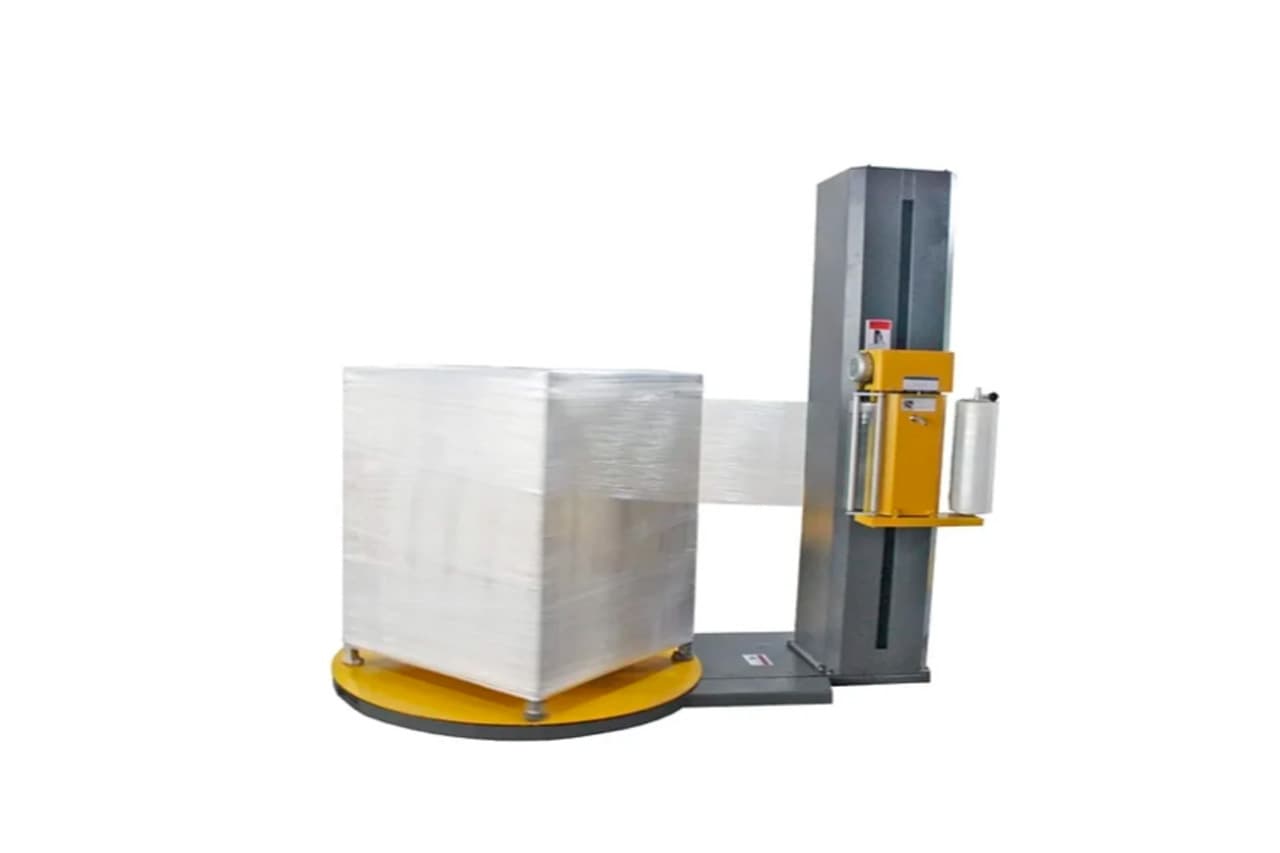

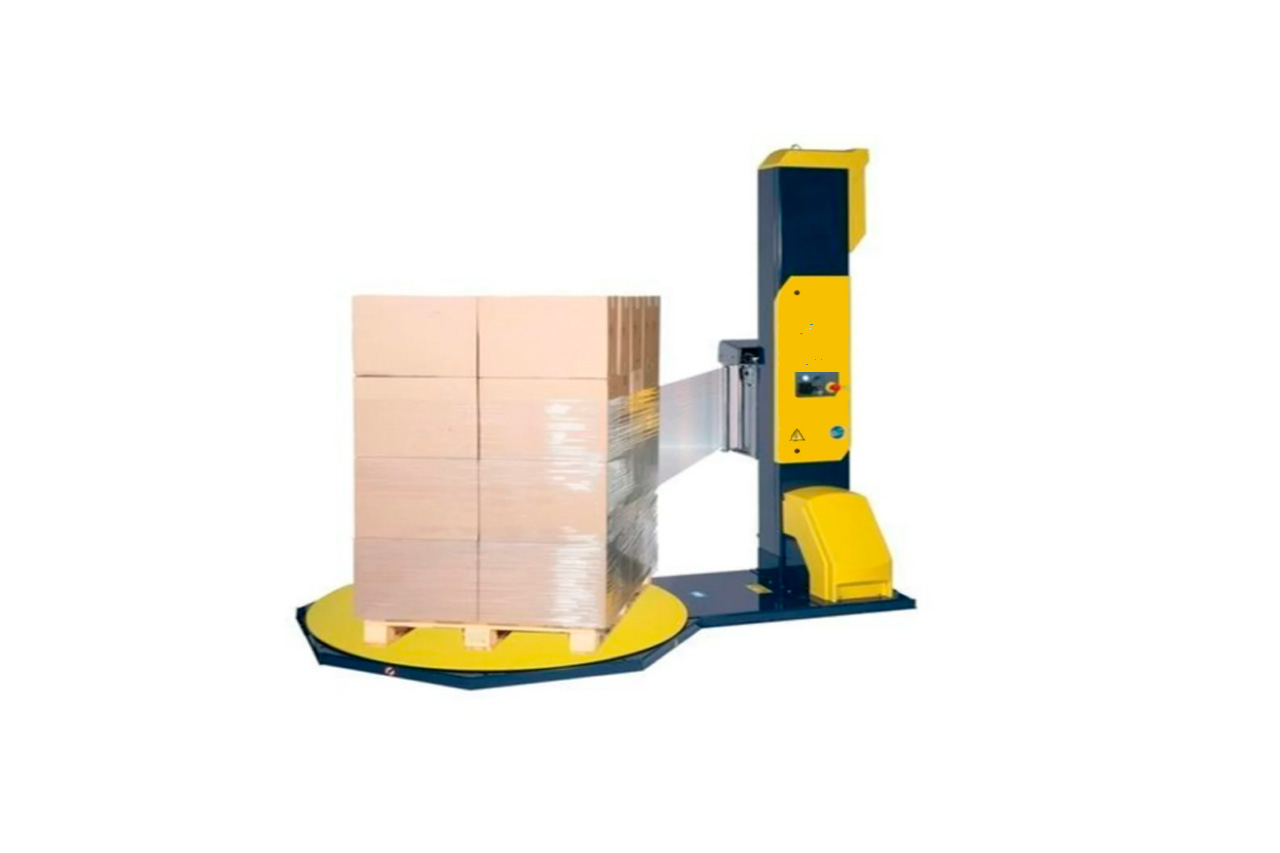

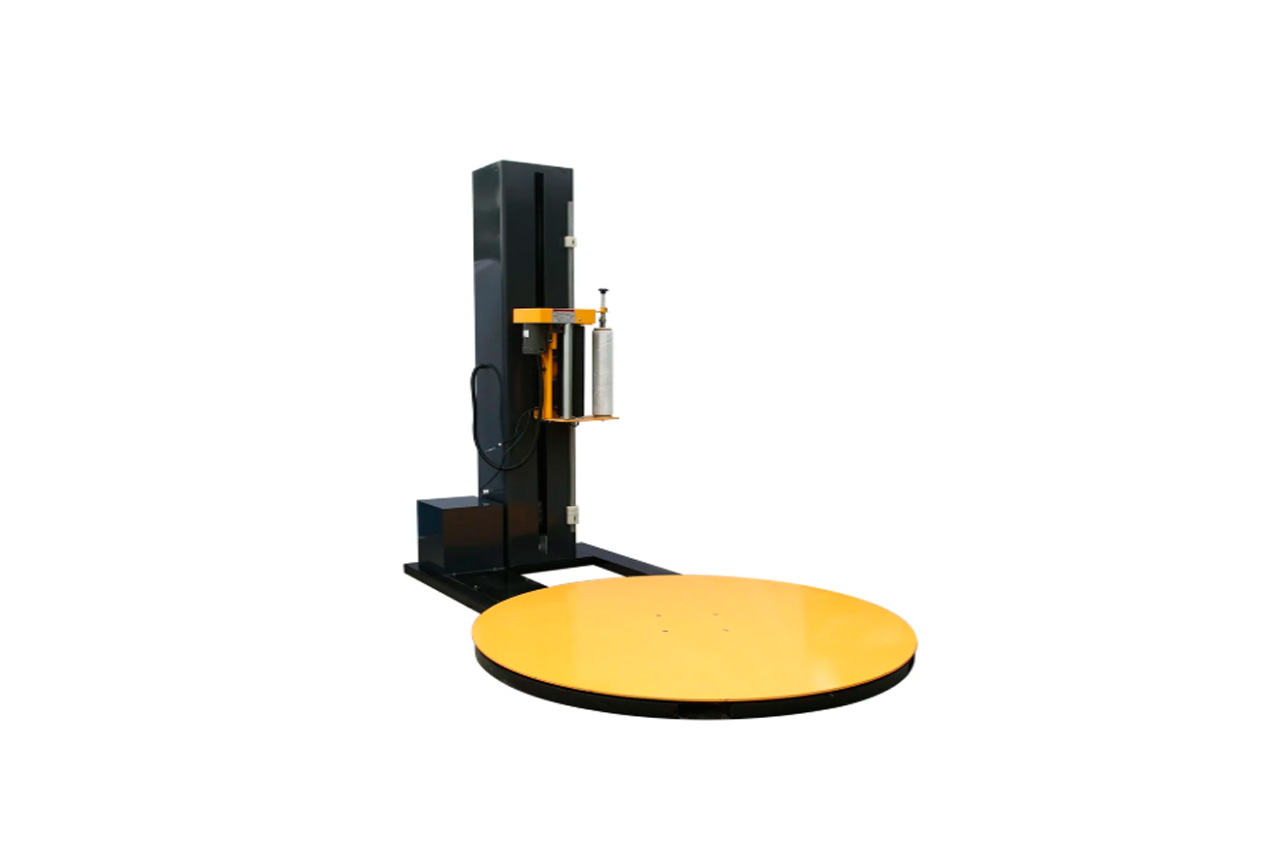

SSP-03PW (Plate Wrapper)

Heavy-duty plate wrapping system for industrial loads

Max Wrapping Speed15–25 loads/hour

Max Wrapping Height2400 mm

Max Wrapping Weight2000 kg

Turntable Speed0–13 RPM (adjustable)

Turntable Size1650 mm

Turntable Drive0.75 PH chain drive

Cut FilmAutomatic

Machine Size2800 x 1800 x 2650 mm

Standard Pre Stretch250–300%

Film Capacity250 mm diameter

Film Width500 mm

Film Delivery SystemPower pre-stretch

Machine Weight800 kg

RemarksHeavy-duty plate wrapping system for industrial loads

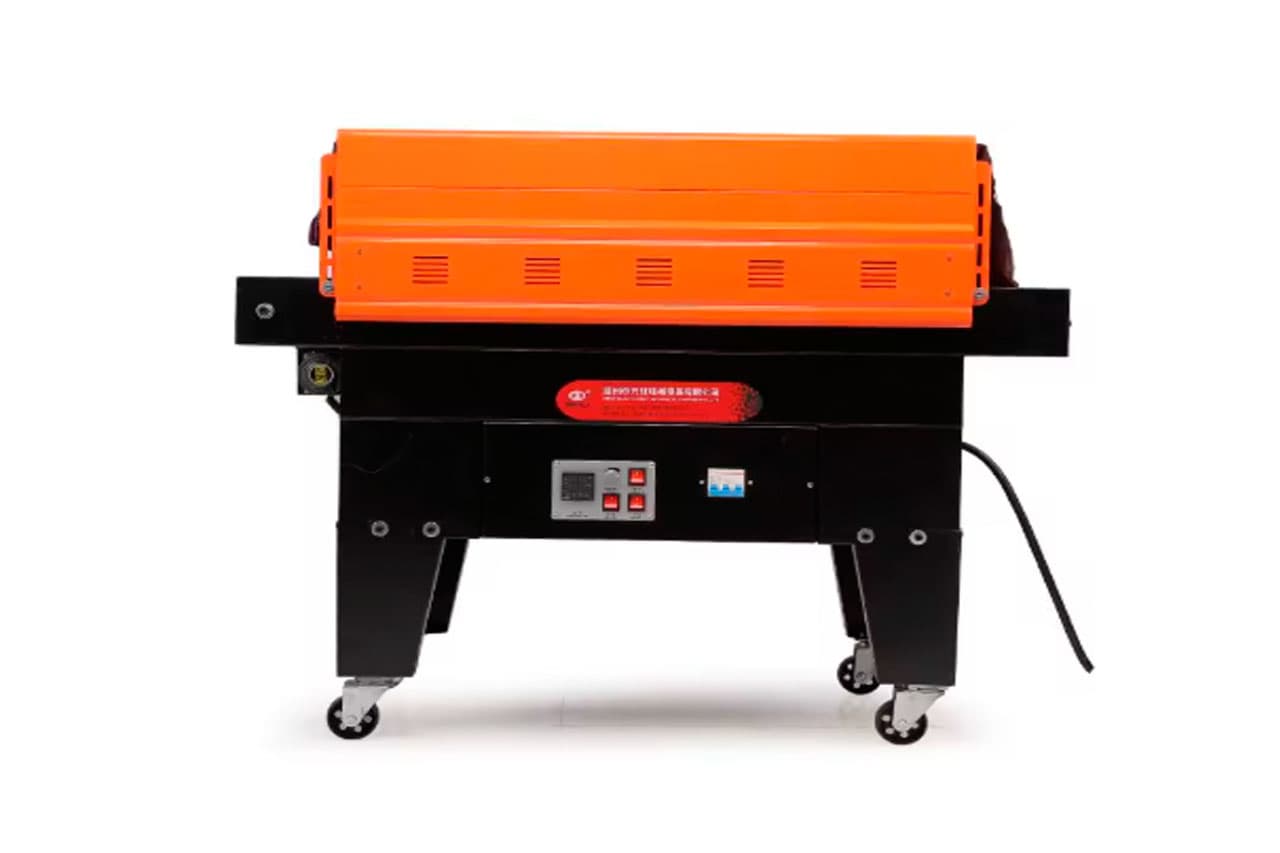

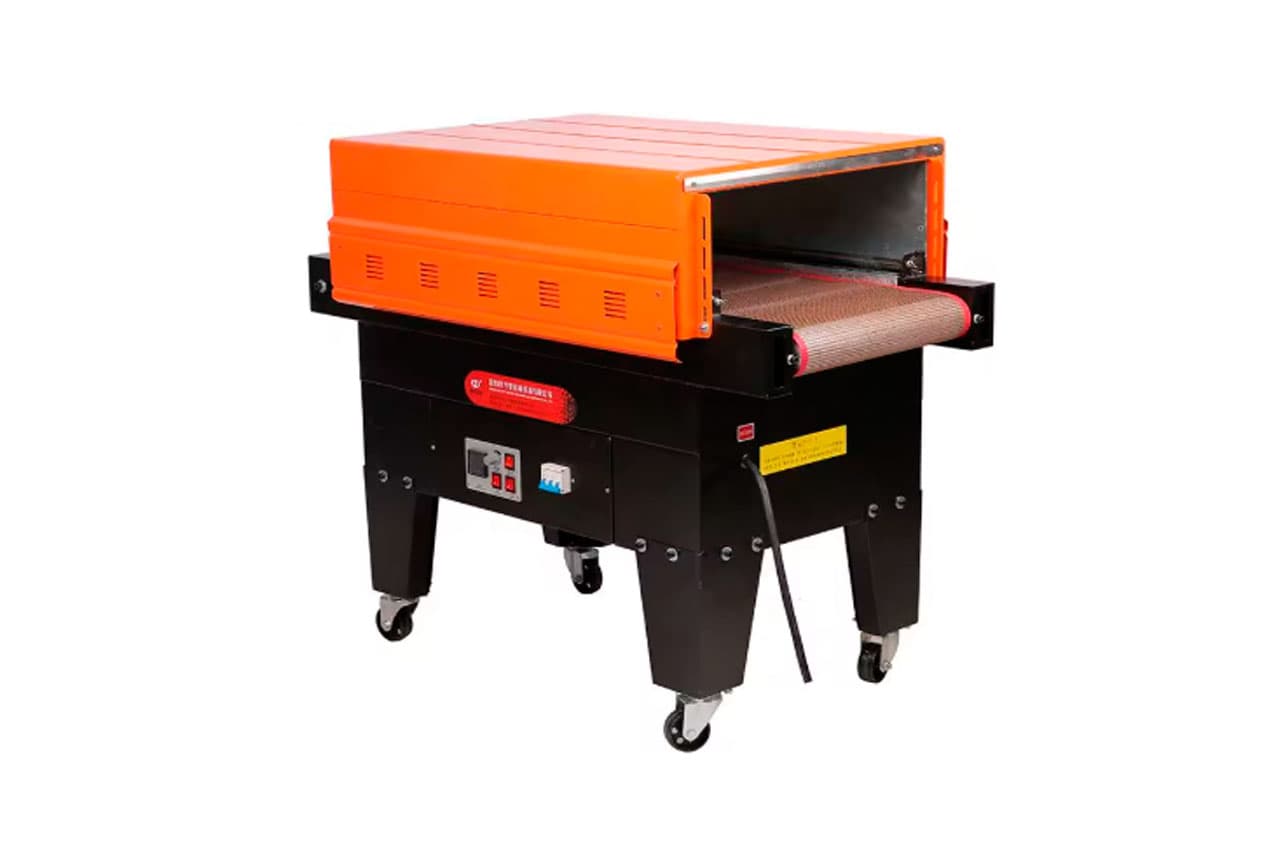

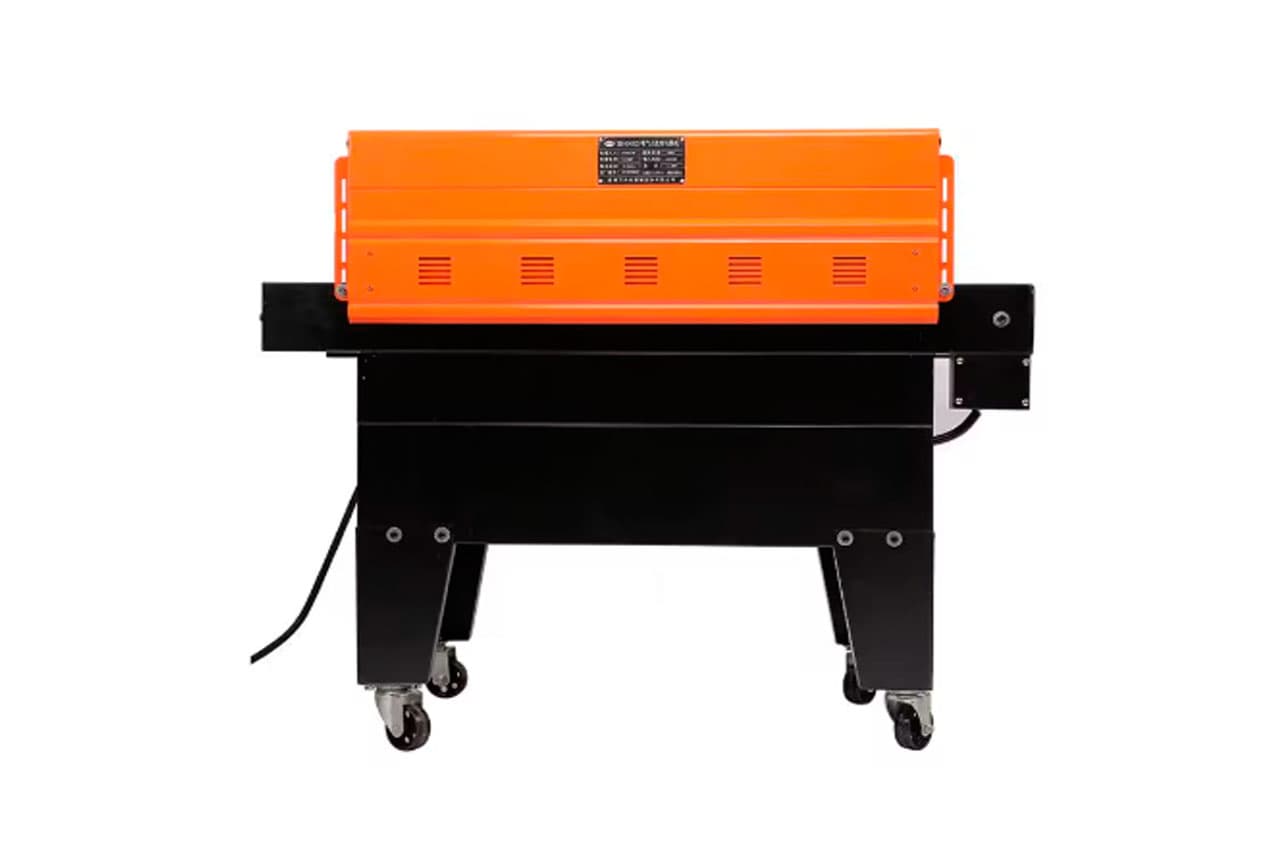

3015A (Shrink Wrapper)

Compact shrink wrapper for small-format packaging

Machine Dimension1200 x 510 x 710 mm

Shrink Size800 x 300 x 150 mm (fixed height)

Conveying Weight10 kg

Conveying Speed0–10 m/min (adjustable)

Power Supply220V, 50Hz

MaterialPOF/PVC

Machine Weight70 kg

RemarksCompact shrink wrapper for small-format packaging

4525A (Shrink Wrapper)

Mid-size shrink wrapper for flexible packaging formats

Machine Dimension1300 x 650 x 830 mm

Shrink Size900 x 450 x 250 mm (adjustable)

Conveying Weight10 kg

Conveying Speed0–10 m/min (adjustable)

Power Supply220V / 380V, 50/60Hz, 6.4 KW

MaterialPOF/PVC/PP

Machine Weight103 kg

RemarksMid-size shrink wrapper for flexible packaging formats

4535A (Shrink Wrapper)

Heavy-duty shrink wrapper for large-format packaging

Machine Dimension1600 x 650 x 830 mm

Shrink Size1200 x 450 x 250 mm (adjustable)

Conveying Weight30 kg

Conveying Speed0–10 m/min (adjustable)

Power Supply380V, 50/60Hz, 9.6 KW

MaterialPOF/PVC/PP

Machine Weight127 kg

RemarksHeavy-duty shrink wrapper for large-format packaging

Need a customized packaging system?

Shivshakti Group offers tailored solutions built for export compliance, automation efficiency, and industrial scalability. Let’s engineer your ideal setup.
